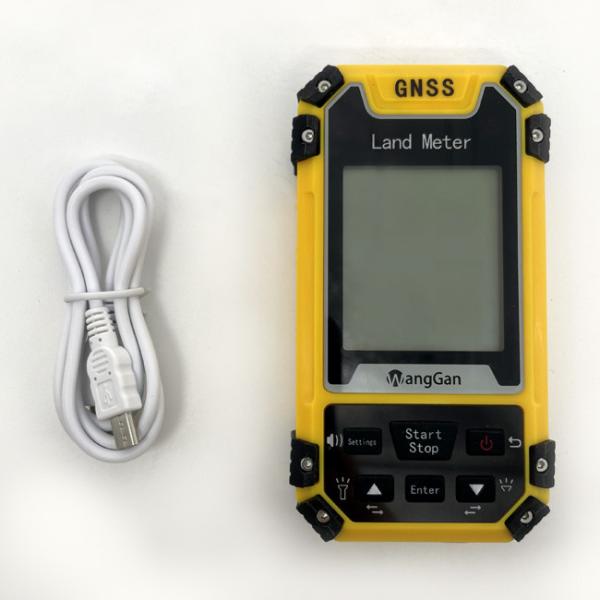

GPS Land Meter Agriculture Measurement GPS Land Survey Equipment
Measurement preparation of GPS land survey equipment:
The first step
In an open area outside ,press the Start button for 2 seconds to
enter into the home surface of the land meter;
The second step
Search satellite after start up,there will be voice prompt,the text
on the screen indicates the status of the signal and the value of
HDOP. It is recommended that the HDOP value below 1.0 start
measuring.
The third step
After the HDOP value is below 1.0 ,press the▲▼button to choose
measurement function,and start to measure according to the
demand.At last,press the【Start/Stop】button to the measurement
surface.
Normal area measurement,L/W area measurement
Using range:all flat terrain
1. At the starting point(Start at any point),press
the【Start/Stop】button to measure in the main surface;
2. Return to the starting point in a circle around the ground,press
the【stop】 button to pause the measurement and view the measurement
data.
3. Press the start button to end measurement and save data.
Using range:The measured terrain should be a regular rectangle
①At the starting point A,press the【Start/Stop】button to measure,and
press the【Enter】button to save point A information;
②Going from point A to point B,press the【Enter】button to save point
B information ;Then going from point B to point C,press
the【Enter】button to save point C information ;At last,press
the【Start/Stop】button to view the measurement data;
③Press the start button to end measurement and save data.
Normal distance measurement
Using range:all flat terrain
①At the starting point(Start at any point),press
the【Start/Stop】button for 3 seconds to measure in the main
surface;Press the【Start/Stop】button at the ending point and end the
measurement to view the measurement data;
②Press the start button to end measurement and save data.
