Professional Black Yellow 2.4 Inch HD Screen Device GPS Land Survey
Equipment

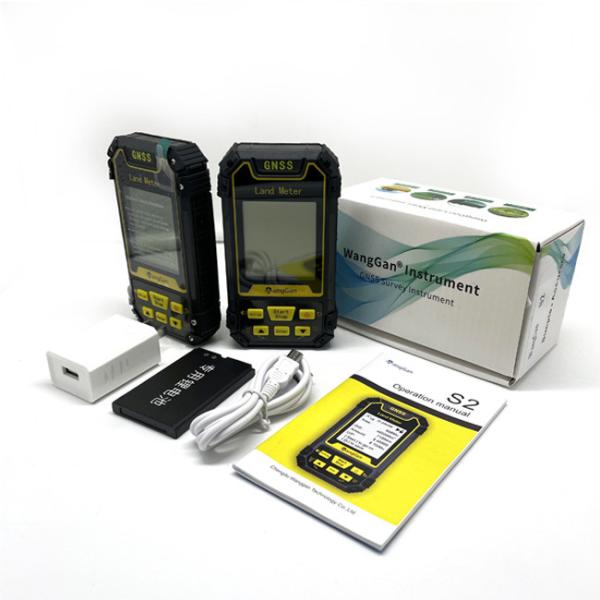

Wanggan S2 portable GPS land survey equipment
Wanggan S2 handheld GPS land survey equipment is a handheld and useful survey equipment. Update and upgrade on
the previous generation, This product has nine mode to measure area
or distance:Slope Mode, Fixed Width Mode, Fixed Width Mode, L/W mode, Circle
Machine Load, Round-trip Machine Load, Intell Slope, Mountain Mode
and Normal mode.
Wanggan S2 land meter instrument is used in many kinds of
situations and solve the problems of measuring acres for you.
Wanggan palm land meter instrument has a 2.4-inch large screen
which is easy to read. And there are two common patterns, then you
could work day and night.
Mountain area measurement to provide you with accurate mountain
area measurement experience
With S2 Wanggan land meter instrument, you could do the mountain
measuring and this S2 land meter instrument is more professional
and accurate in mountain, hilly, sloping land and woodland
measurement.
Mountain Measurement
. In the main interface,press the [▲/▼] to switch function to
“Mountain".. Press the [ Start] button to measure at the top of the
mountain, and press the [Enter] button to confirm the information.
. Press the [Enter] button and proceed from the foot of the
mountain, walk around the foot of the mountain,and back to the
starting point,press the [Enter] button,then press the [Stop]
button to end measure and view data.
. Press
to save the data.
It doesn’t matter what the measurement is, regular or irregular,
Wanggan S2 land meter instrument is used for measuring various
terrain areas, such as square, rectangle, polygon, triangle,
circle, oval, and other irregular terrain. So you could do length
and width area measurement, fixed width area measurement, fixed
point measurement and slope distance measurement.
Normal area measurement
.At the starting point,press the [start] button to measurement in
the main interface.
. Return to the starting point in a circle around the ground,press
the [stop] button to pause the measurement and view the measurement
data.
. Press the button to end measurement and save data.
Normal distance measurement
In the main interface,press the [Start] button for 3 sec to
measurement at the starting point.
. Walk along the measuring line to the end point and press the
[Stop] button to stop the measurement and view the measurement
data.
. If the measurement is not completed,press the [Start] button
again to continue the measurement. If the measurement is completed,
press
to save the data.
Slope Measurement
. At the Slope in parameter setting, press the [▲/▼] button to set
the gradient.
. After setting is completed,press the d to return main interface.
.In the main interface,press the [▲/▼] button to switch function to
"Slope measurement".
.Press the [ Start] button at the staring point and circle the
slope.
. Back to the starting point, press the I Stop ] button to pause
measurement and view data.If the measurement is not completed,
press the [ Start] button again to continue the measurement.
.If the measurement is completed, press to save the data
This mode is mainly used for measuring the area of agricultural
machinery back and forth work
Round-trip machine load
. At the Round-trip machine load in parameter setting,press the
[▲/▼]button to set the width.
. After setting is completed,press the to return main interface.
. Press the [▲/▼]button switch function to Round-trip machine
load"in the main interface.
. Press [Start] button at the starting point to start the
measurement at the beginning of the work.Press the [Stop] button to
pause measurement and view data after agricultural machinery work
is completed;If the measurement is not completed,press the [Start]
button again to
continue the measurement. If the measurement is completed,press to save the data.
This mode is mainly used for measuring the area around the ground
Circle machine load measurement
.Circle machine load measurement function is used to measure area
around the land, set the position of the land meter in the vehicle
and the nearest distance of the ground boundary, and then measure
the boundary around the region.Then measuring around the boundary
of the land.
.At the Circle machine load in parameter setting, press the
[▲/▼]button to set the edge distance.
.After setting is completed, press the to return main interface.
.Press the [▲/▼]button switch function to Circle machine load"in
the main interface.
.In the main interface, press the[ Start] button to measure at
starting point.
.After a circle around the land under test, press the[ Stop ]
button to end measurement and view data press to save data.
Matters need attention:
①Check whether the machine can be started up normally.
②This product powered by lithium batteries,do not put it under the
sun exposure. For other lithium battery transportation and
safety,please refer to relevant national regulations.
③When this product is not used for a long time,please take out the
battery.
④Please turn on the product and use it in open area,the effect is
the best.
⑤Affected by GPS signal,different regions receive different GPS
signals,the measurement results will be inconsistent,this is normal
condition,please feel free to use it.
⑥Please use the original charger to charge the device(Do not use
non-conforming charger ).
