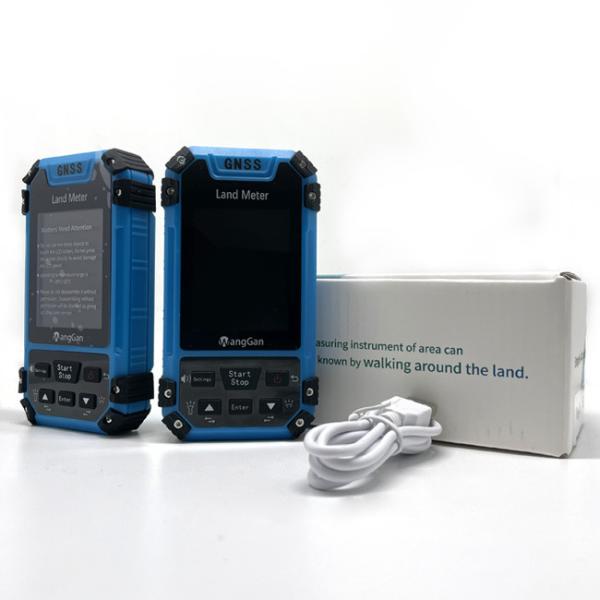

Handheld Device Blue Black Color Screen 320X240 MM GPS Land Survey Equipment

Wanggan S3 GPS land survey equipment

Wanggan S3 GPS land survey equipment is a more powerful survey equipment. Update and upgrade on the previous generations, This product has a 320*240 inch color screen that the numbers could be more vivid to view. And the functions in this GPS equipment are also well-found. Mode to measure area or distance: Normal mode, Circle Machine Load, Fixed Width Mode, Fixed pointed Mode, L/W mode, Round-trip Machine Load, Normal distance Mode, MultiPoint Mode.

Color screen land meter

Dual satellite land positioning

Wanggan S3 land meter instrument is used in many kinds of situations and solve the problems of measuring acres for you.

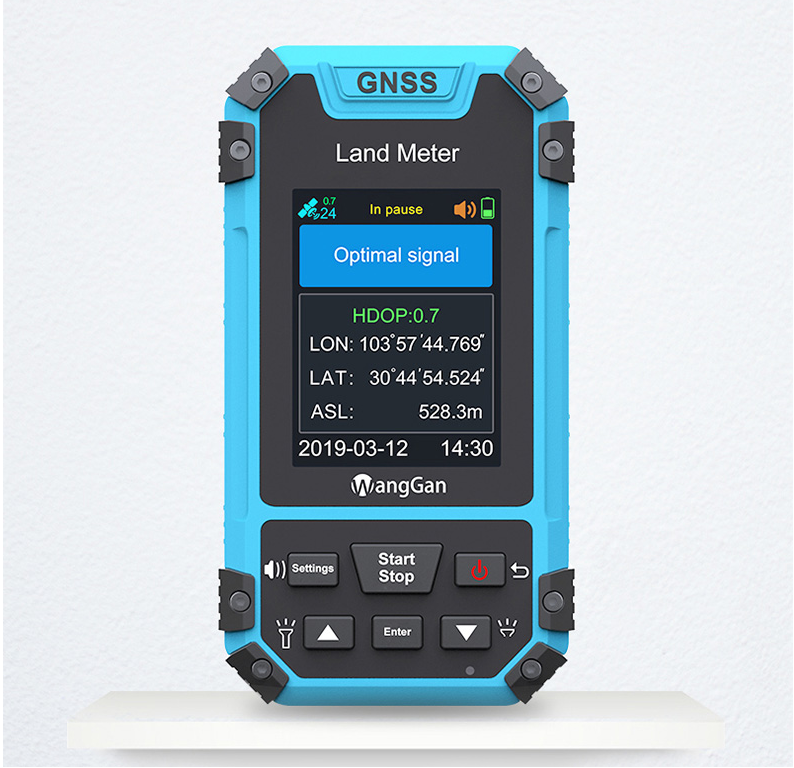

This large color screen is clear and easy to read, this Wanggan S3 land meter instrument works well in the sun and at night, intuitive and simple to operate.

.

This mode is mainly used for measuring the area of agricultural machinery back and forth work

Round-trip machine load

. At the Round-trip machine load in parameter setting,press the [▲/▼]button to set the width.

. After setting is completed,press the to return main interface.

. Press the [▲/▼]button switch function to Round-trip machine load"in the main interface.

. Press [Start] button at the starting point to start the measurement at the beginning of the work.Press the [Stop] button to pause measurement and view data after agricultural machinery work is completed;If the measurement is not completed,press the [Start] button again to

continue the measurement. If the measurement is completed,pressto save the data.

This mode is mainly used for measuring the area around the ground

Circle machine load measurement

.Circle machine load measurement function is used to measure area around the land, set the position of the land meter in the vehicle and the nearest distance of the ground boundary, and then measure the boundary around the region.Then measuring around the boundary of the land.

.At the Circle machine load in parameter setting, press the [▲/▼]button to set the edge distance.

.After setting is completed, press the to return main interface.

.Press the [▲/▼]button switch function to Circle machine load"in the main interface.

.In the main interface, press the[ Start] button to measure at starting point.

.After a circle around the land under test, press the[ Stop ] button to end measurement and view data press to save data.

Wanggan S3 land meter instrument is used for harvester, tractor, seeder, transplanter and other kinds of agricultural machinery measurement.

The machine load measurement automatically identifies the repeated area and does not calculate the area repeatedly.

On the vehicle measurement, applicable to all kinds of agricultural machinery.

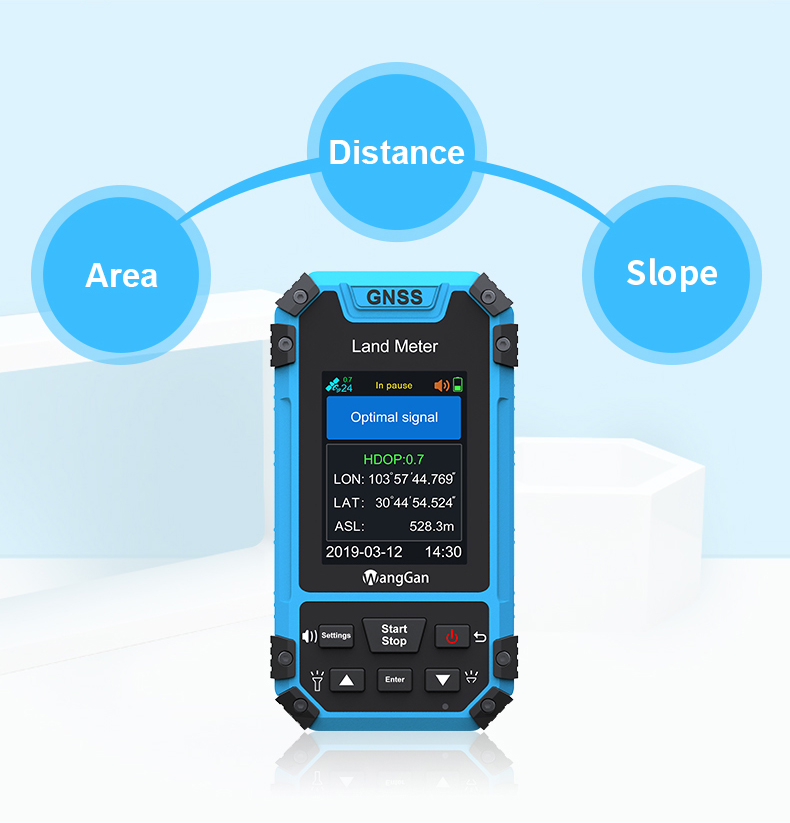

This Wanggan S3 land meter instrument could measure area, distance and slope

It doesn’t matter what the measurement is, regular or irregular, Wanggan S3 land meter instrument is used for measuring various terrain areas, such as square, rectangle, polygon, triangle, circle, oval, and other irregular terrain. So you could do length and width area measurement, fixed width area measurement, fixed point measurement and slope distance measurement.

Normal area measurement

.At the starting point,press the [start] button to measurement in the main interface.

. Return to the starting point in a circle around the ground,press the [stop] button to pause the measurement and view the measurement data.

. Press the button to end measurement and save data.

Normal distance measurement

In the main interface,press the [Start] button for 3 sec to measurement at the starting point.

. Walk along the measuring line to the end point and press the [Stop] button to stop the measurement and view the measurement data.

. If the measurement is not completed,press the [Start] button again to continue the measurement. If the measurement is completed,press to save the data.

Slope Measurement

. At the Slope in parameter setting, press the [▲/▼] button to set the gradient.

. After setting is completed,press the d to return main interface.

.In the main interface,press the [▲/▼] button to switch function to "Slope measurement".

.Press the [ Start] button at the staring point and circle the slope.

. Back to the starting point, press the I Stop ] button to pause measurement and view data.If the measurement is not completed, press the [ Start] button again to continue the measurement.

.If the measurement is completed, press to save the data
