Professional Yellow and Black HD Color Screen Device GPS Land Survey Equipment

Description

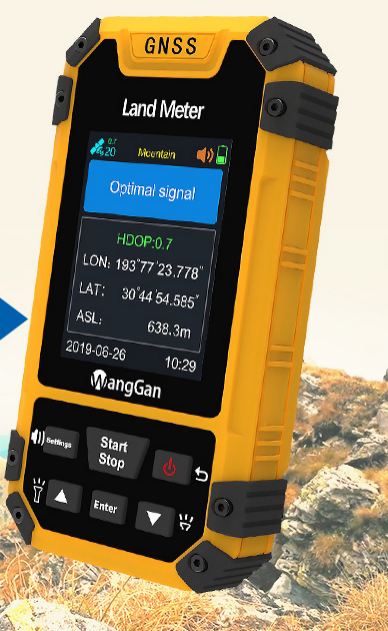

Wanggan S4 GPS land survey equipment developed from the last version S3, added functions like Initial barometric calibration, Mountain area measurement, Intell. Slope measurement and Data export which means that you could measure the mountain area and slope without setting the slope grades.320*240 inch color screen is good for your eyes and help you reading comfortably.

Color screen land meter

Intelligent slope measurement and hand-held Vehicle-mounted measurement&Dual satellite land positioning

There are lots of merits about S4 Wanggan land meter, such as Voice Broadcast, Easily Operate, Accurate Measurement and One Year Warranty

Built in barometer of this S4 land meter instrument, accurate to measure altitude. There is intelligent mountain area measurement mode in this device. The combination of barometer and GPS dual satellite positioning makes the measurement of mountain area more accurate and easy.

Wanggan S4 land meter instrument is used in many kinds of situations and solve the problems of measuring acres for you.

This large color screen is clear and easy to read, this Wanggan S4 land meter instrument works well in the sun and at night, intuitive and simple to operate.

This Wanggan S4 land meter instrument built in barometer and accurate to measure altitude.

Mountain Measurement

Mountain area measurement to provide you with accurate mountain area measurement experience

With S2 Wanggan land meter instrument, you could do the mountain measuring and this S2 land meter instrument is more professional and accurate in mountain, hilly, sloping land and woodland measurement.

Mountain Measurement

. In the main interface,press the [▲/▼] to switch function to “Mountain".

. Press the [ Start] button to measure at the top of the mountain, and press the [Enter] button to confirm the information.

. Press the [Enter] button and proceed from the foot of the

mountain, walk around the foot of the mountain,and back to the starting point,press the [Enter] button,then press the [Stop] button to end measure and view data.

. Press to save the data.

This mode is mainly used for measuring the area of agricultural machinery back and forth work

Round-trip machine load

. At the Round-trip machine load in parameter setting,press the [▲/▼]button to set the width.

. After setting is completed,press the to return main interface.

. Press the [▲/▼]button switch function to Round-trip machine load"in the main interface.

. Press [Start] button at the starting point to start the measurement at the beginning of the work.Press the [Stop] button to pause measurement and view data after agricultural machinery work is completed;If the measurement is not completed,press the [Start] button again to

continue the measurement. If the measurement is completed,pressto save the data.

This mode is mainly used for measuring the area around the ground

Circle machine load measurement

.Circle machine load measurement function is used to measure area around the land, set the position of the land meter in the vehicle and the nearest distance of the ground boundary, and then measure the boundary around the region.Then measuring around the boundary of the land.

.At the Circle machine load in parameter setting, press the [▲/▼]button to set the edge distance.

.After setting is completed, press the to return main interface.

.Press the [▲/▼]button switch function to Circle machine load"in the main interface.

.In the main interface, press the[ Start] button to measure at starting point.

.After a circle around the land under test, press the[ Stop ] button to end measurement and view data press to save data.

Wanggan S4 land meter instrument is used for harvester, tractor, seeder, transplanter and other kinds of agricultural machinery measurement.

The machine load measurement automatically identifies the repeated area and does not calculate the area repeatedly.

On the vehicle measurement, applicable to all kinds of agricultural machinery.

It doesn’t matter what the measurement is, regular or irregular, Wanggan S3 land meter instrument is used for measuring various terrain areas, such as square, rectangle, polygon, triangle, circle, oval, and other irregular terrain. So you could do length and width area measurement, fixed width area measurement, fixed point measurement and slope distance measurement.

Normal area measurement

.At the starting point,press the [start] button to measurement in the main interface.

. Return to the starting point in a circle around the ground,press the [stop] button to pause the measurement and view the measurement data.

. Press the button to end measurement and save data.

Normal distance measurement

In the main interface,press the [Start] button for 3 sec to measurement at the starting point.

. Walk along the measuring line to the end point and press the [Stop] button to stop the measurement and view the measurement data.

. If the measurement is not completed,press the [Start] button again to continue the measurement. If the measurement is completed,press to save the data.

Slope Measurement

. At the Slope in parameter setting, press the [▲/▼] button to set the gradient.

. After setting is completed,press the d to return main interface.

.In the main interface,press the [▲/▼] button to switch function to "Slope measurement".

.Press the [ Start] button at the staring point and circle the slope.

. Back to the starting point, press the I Stop ] button to pause measurement and view data.If the measurement is not completed, press the [ Start] button again to continue the measurement.

.If the measurement is completed, pressto save the data
