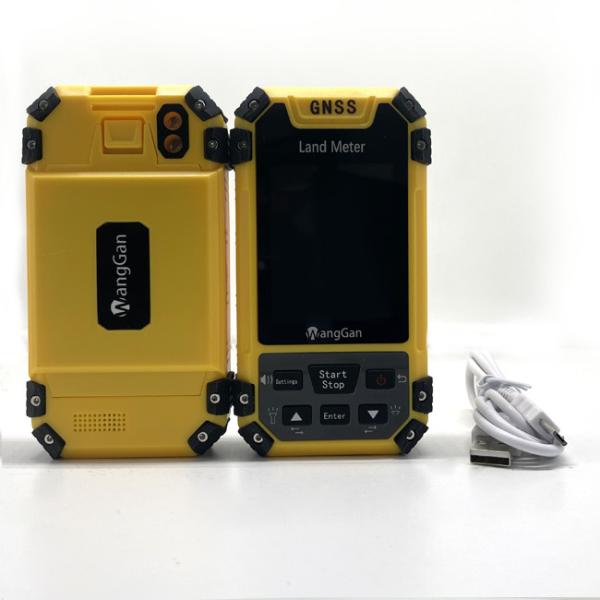

Handheld GPS Land Meter Land Area Length Measurement GPS Measuring
Tool
Altitude choose of GPS measuring tool:
①On the home page of boot,press the 【Settings】button to enter the
settings interface；
②Press the▲▼button move to“System setting”；Press the【Enter】button
to enter；
③Press the【Enter】button to the altitude;
④Press ▲▼ button to choose GPS or barometer;
⑤After finishing setting,press the start button to exit.
Note: if you choose the barometer, you need to calibrate the
height. The measurement is more accurate after calibration.
• Altitude calibration:
①On the home page of boot,press the 【Settings】button to enter the
settings interface；
②Press the▲▼button move to“Altitude calibration”；Press
the【Enter】button to enter；
③Press ▲▼ button to adjust the value of number；
④After finishing setting,press the start button to exit.
• Data record
• Statistics record
①On the home page of boot,press the 【Settings】button to enter the
settings interface；
②Press the▲▼button move to“Data record”；Press the【Enter】button to
enter；
③Press ▲▼ button to “Statistics record”,then press the【Enter】button
to enter；
④Press ▲▼ to choose area or distance in the data record interface;
⑤Press 【Enter】button can delete the data.
Circle machine load area measurement:
Circle machine load measurement function is used to measure area
around the land, set the position of the land meter in the vehicle
and the nearest distance of the ground boundary,and then measure
the boundary around the region.Then measuring around the boundary
of the land.
①At the Circle machine load in parameter setting,press the ▲▼button
to set the edge distance;
②After setting is completed,press the start to return main
interface;
③Press the▲▼button switch function to “Circle machine load”in the
main interface;
④In the main interface,press the【Start】button to measure at
starting point .
⑤Press the【Stop】button to pause measurement and view data after
agricultural machinery work is completed；If the measurement is not
completed,press the 【Start】 button again to continue the
measurement. If the measurement is completed,press start to save
the data.
| Functions | S4 |
| Positioning accuracy | 2.5m |
| Initial barometric calibration | √ |
| Normal area measurement | √ |
| Mountain area measurement | √ |
| Intell. Slope measurement | √ |
| Fixed point measurement | √ |
| Fixed width area measurement | √ |
| Normal distance measurement | √ |
| Manual distance measurement | √ |
| Altitude display | √ |
| Altitude measurement | √ |
| Track display | √ |
| Mu setting | √ |
| Unit setting | √ |
| Time display | √ |
| Data statistics | √ |
| Historical record | √ |
| Lighting /Currency detection | √ |
| Dry battery | √ |
| lithium battery | √ |
| Data storage | 200 |
| Voice broadcast | √ |
| Data export | √ |
